 AP1/2 S2000 |
 |
 |
| TypeDA |
| *Click the damper images below to see larger pictures. |
|

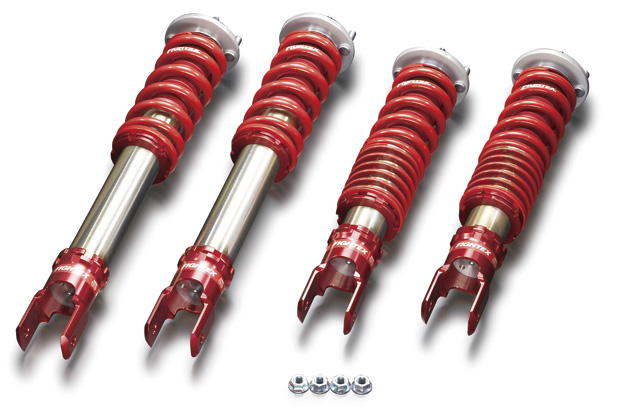

| AP1/2 FIGHTEX Damper KIT |
| Type |
 |
 |
 |
 |
|
 |
| Kit contents |
Damper + Spring + Pillow ball upper Mount |
| Model |
AP1/2 (S2000) |
| Part No. |
51520-AP1-000 |
51530-AP1-000 |
51540-AP1-000 |
| Price (KIT) |
¥331,000 |
¥357,000 |
¥479,000 |
| Price (damper only) |
51522-AP1-000
¥234,000 |
51532-AP1-000
¥260,000 |
51542-AP1-000
¥390,000 |
| Price (damper + spring) |
51521-AP1-000
¥266,000 |
51531-AP1-000
¥292,000 |
51541-AP1-000
¥414,000 |
Supplied spring rate
[kgf/mm-mm] |
Front |
10K-200 |
14K-200 |
12K-200 |
| Rear |
10K-160 |
14K-160 |
12K-160 |
| Accessories |
R: Helper springs |
R: Helper springs |
- |
| Design |
F/R Standard design |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥25,000 ~ /set)
|
Damper KIT contents: Damper, main spring, rear helper spring (on certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided. |
|
|
|
|
