AW11 MR2
well

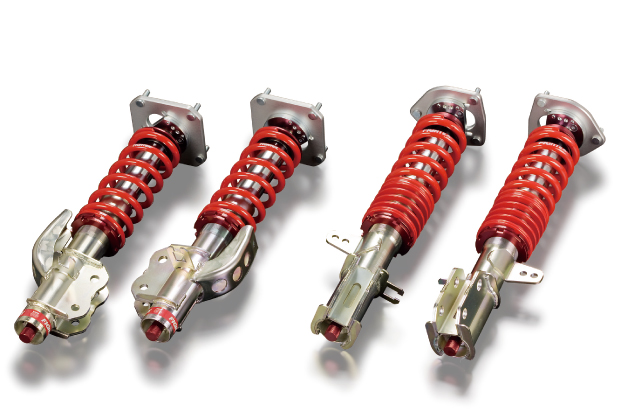

AW11 FIGHTEX Damper KIT
Type
TypeFS
Kit contents Damper + Spring + Pillow ball upper mount
Model AW11 (MR2)
Part No. 51500-AW1-000
Price (KIT) ¥282,000~
*Please ask
Price (damper only) 51502-AW1-000
¥208,000~
*Please ask
Price (damper + spring) 51501-AW1-000
¥232,000~
*Please ask
Supplied spring rate
[kgf/mm-mm]
Front 5K-200
Rear 10K-160
Accessories Rear helper springs
Design F/R Up side down design
Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, rear helper spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
