 BG5/BD5 LEGACY |
 |
 |

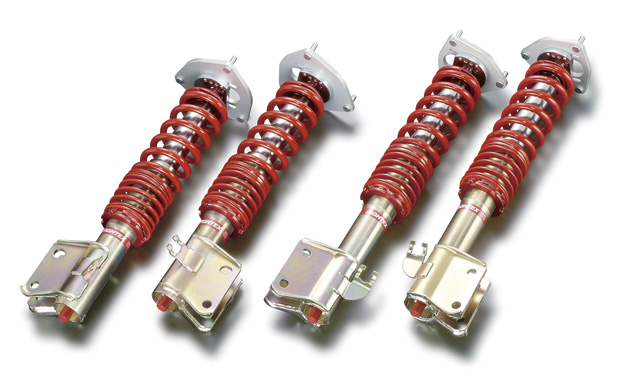

| BG5/BD5 FIGHTEX Damper KIT |
| Type |
 |
 |
 |
 |
|
|
| Kit contents |
Damper + Spring + Pillow ball upper mount |
| Model |
BG5/BD5 (LEGACY) |
| Part No. |
51500-BG5-000 |
51520-BG5-000 |
51540-BG5-000 |
| Price (KIT) |
¥375,000~
*Please ask |
¥375,000~
*Please ask |
¥518,000~
*Please ask |
| Price (damper only) |
51502-BG5-000
¥271,000~
*Please ask |
51522-BG5-000
¥286,000~
*Please ask |
- |
| Price (damper + spring) |
51501-BG5-000
¥310,000~
*Please ask |
51521-BG5-000
¥310,000~
*Please ask |
- |
Supplied spring rate
[kgf/mm-mm] |
Front |
7K-200 |
7K-200 |
7K-200 |
| Rear |
5K-160 |
5K-200 |
5K-200 |
| Accessories |
Helper springs |
- |
- |
| Design |
F/R: Up side down design |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥25,000 ~ /set)
|
Damper KIT contents: Damper, main spring, helper spring (for certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided. |
|
|
|
|
