 CJ4A MIRAGE |
 |
 |
| TypeFS |

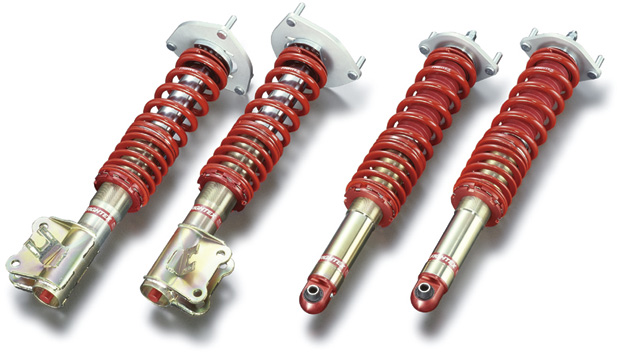

| *Click the damper images below to see larger pictures. |
| CJ4A FIGHTEX Damper KIT |
| Type |
 |
 |
 |
 |
|
|
| Kit contents |
Damper + Spring + Pillow ball upper mount |
| Model |
CJ4A (MIRAGE) |
| Part No. |
51500-CJ4-000 |
51520-CJ4-000 |
51530-CJ4-000 |
| Price (KIT) |
¥263,000~
*Please ask |
¥263,000~
*Please ask |
¥283,000~
*Please ask |
| Price (damper only) |
51502-CJ4-000
¥183,000~
*Please ask |
51522-CJ4-000
¥195,000~
*Please ask |
51532-CJ4-000
¥215,000~
*Please ask |
| Price (damper + spring) |
51501-CJ4-000
¥213,000~
*Please ask |
51521-CJ4-000
¥213,000~
*Please ask |
51531-CJ4-000
¥233,000~
*Please ask |
Option |
 Pillow-ball bush (R ¥10,000) |
Supplied spring rate
[kgf/mm-mm] |
Front |
8K-160 |
8K-200 |
10K-200 |
| Rear |
6K-200 |
6K-200 |
8K-200 |
| Accessories |
Helper springs |
- |
- |
| Design |
F: Up side down design / R: Standard design |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
|
Damper KIT contents: Damper, main spring, helper spring (for certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided. |
|
|
|
|
