CN9A LANCER
well
TypeFS
*Click the damper images below to see larger pictures.

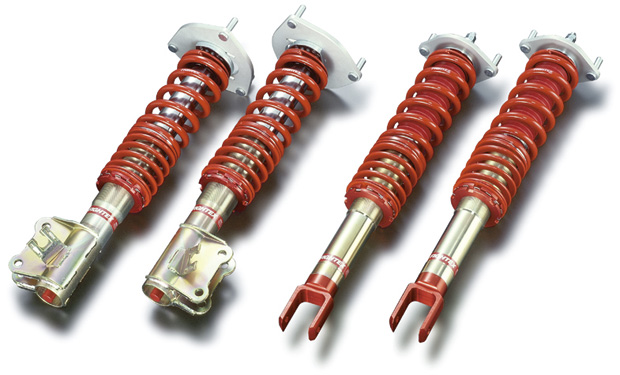

CN9A FIGHTEX Damper KIT
Type
TypeFS
TypeDA TypeDA-G
TypeEX

TypeEX-G

Kit contents Damper + Spring + Pillow ball upper mount
Model CN9A (LANCER)
Part No. 51500-CN9-000 51520-CN9-000 51530-CN9-000 51540-CN9-000 51550-CN9-000
Price (KIT) ¥263,000~
*Please ask
¥263,000 ¥283,000 ¥383,000~
*Please ask
¥383,000~
*Please ask
Price (damper only) 51502-CN9-000
¥183,000~
*Please ask
51522-CN9-000
¥195,000
51532-CN9-000
¥215,000
- -
Price (damper + spring) 51501-CN9-000
¥213,000~
*Please ask
51521-CN9-000
¥213,000
51531-CN9-000
¥233,000
- -
Supplied spring rate
[kgf/mm-mm]
Front 10K-160 10K-200 12K-200 10K-200 12K-200
Rear 8K-160 8K-200 10K-200 8K-200 10K-200
Accessories Helper springs - - - -
Design F: Up side down design / R: Standard design
Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, helper spring (for certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
