 CZ4A LANCER EVO10 |
 |
| TypeDA |
| *Click the damper images below to see larger pictures. |

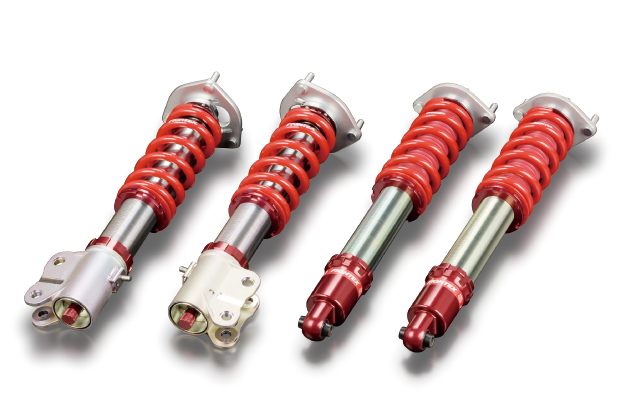

| CZ4A FIGHTEX Damper KIT |
| Type |
 |
 |
 |
|
| Kit contents |
Damper + Spring + Pillow ball upper mount |
| Model |
CZ4A (LANCER EVO10) |
| Part No. |
51520-CZ4-000 |
51530-CZ4-000 |
| Price (KIT) |
¥263,000 |
¥283,000 |
| Price (damper only) |
51522-CZ4-000 ¥195,000 |
51532-CZ4-000 ¥215,000 |
| Price (damper + spring) |
51521-CZ4-000 ¥213,000 |
51531-CZ4-000 ¥233,000 |
Supplied spring rate
[kgf/mm-mm] |
Front |
12K-200 |
14K-200 |
| Rear |
10K-200 |
12K-200 |
| Adjustable height range to standard height |
Front |
approx. +20mm ~ -35mm |
| Rear |
approx. +20mm ~ -30mm |
| Design |
F: Up side down design / R: Standard design |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
|
Damper KIT contents: Damper, main spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided. |
|
|
|
|
