DC2/DB8 INTEGRA TypeR
well
TypeFS
*Click the damper images below to see larger pictures.

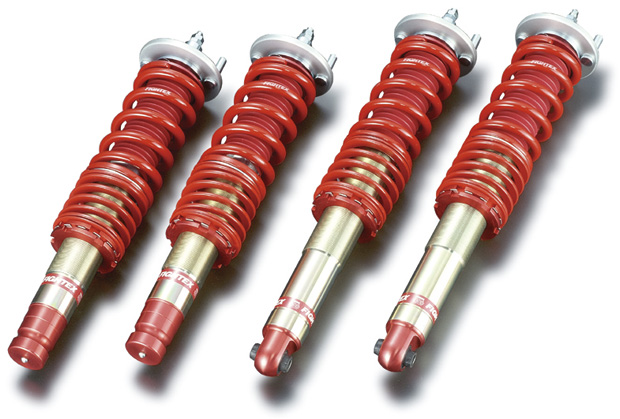

DC2/DB8 FIGHTEX Damper KIT
Type
TypeFS

TypeST
TypeDA TypeDA-G
dc2-fs dc2-fs dc2-fs dc2-fs
Kit contents Damper + Spring + Pillow ball upper Mount
Model DC2/DB8 (INTEGRA TypeR)
Part No. 51500-DC2-000 51510-DC2-000 51520-DC2-000 51530-DC2-000
Price (KIT) ¥238,000~
*Please ask
¥338,000~
*Please ask
¥238,000 ¥258,000
Price (damper only) 51502-DC2-000
¥158,000~
*Please ask
51512-DC2-000
¥258,000~
*Please ask
51522-DC2-000
¥170,000
51532-DC2-000
¥190,000
Price (damper + spring) 51501-DC2-000
¥188,000~
*Please ask
51511-DC2-000
¥288,000~
*Please ask
51521-DC2-000
¥188,000
51531-DC2-000
¥208,000

Option

piloPillow-ball bush (R ¥10,000)
Supplied spring rate
[kgf/mm-mm]
Front 10K-160 10K-160 10K-160 20K-160
Rear 8K-160 8K-160 8K-200 8K-200
Accessories Helper springs Helper springs - -
Design F/R Standard design
Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, helper spring (on certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
