ECR33 SKYLINE GT-S
well
bnr
Type FS (Pillow-ball bush is optional)
*Click the damper images below to see larger pictures.

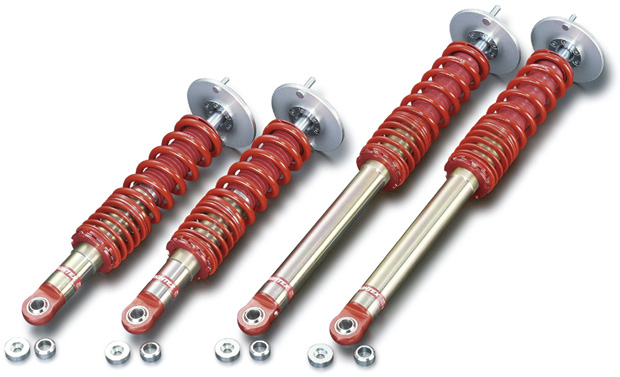

ECR33 FIGHTEX Damper KIT
Type
TypeFS

TypeST
hcr32-fs





Kit contents Damper + Spring + Pillow ball upper Mount
Model ECR33 (SKYLINE GT-S)
Part No. 51500-CR3-000 51510-CR3-000
Price (KIT) ¥248,000~
*Please ask
¥348,000~
*Please ask
Price (damper only) 51502-CR3-000
¥168,000~
*Please ask
51512-CR3-000
¥268,000~
*Please ask
Price (damper + spring) 51501-CR3-000
¥198,000~
*Please ask
51511-CR3-000
¥298,000~
*Please ask

Option

piloPillow-ball bush (FR ¥32,000)
Supplied spring rate
[kgf/mm-mm]
Front 8K-200 8K-200
Rear 6K-200 6K-200
Accessories Helper springs Helper springs
Design F/R Standard design
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, helper spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
