EG6 CIVIC
well
eg6

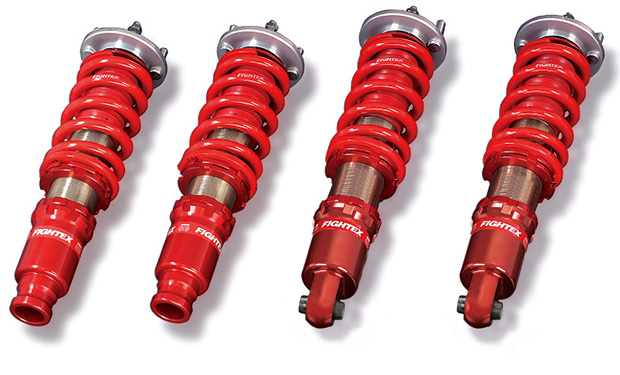

EG6 (CIVIC) FIGHTEX Damper KIT
Type TypeN1
Kit contents Damper + Spring + Pillow ball upper Mount
Model EG6 (CIVIC)
Part No. 51560-EG6-000
Price (KIT) ¥258,000
Price (damper only) 51562-EG6-000 ¥190,000
Price (damper + spring) 51561-EG6-000 ¥208,000

Option

piloPillow-ball bush (R ¥10,000)
Supplied spring rate
[kgf/mm-mm]
Front 20K-160
Rear 18K-160
Design F/R Standard design
Remarks N1 race can't use pillow ball uper mount by the competition regulation.
-Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
