FN2 CIVIC TypeR
well

FN2 FIGHTEX Damper KIT
Type TypeDA
Kit contents Damper + Spring + Pillow-ball upper Mount
Model FN2 (CIVIC TypeR)
Part No. 51520-FN2-000
Price (KIT) ¥278,000
Price (damper only) 51522-FN2-000 ¥235,000
Price (damper + spring) 51521-FN2-000 ¥253,000

Option

Pillow-ball bush (R ¥10,000)
Supplied spring rate
[kgf/mm-mm]
Front 10K-200
Rear 8K-160
Adjustable height range to standard height Front approx. -10mm ~ -50mm
Rear approx. -5mm ~ -50mm
Design F:Upside down design / R:Standard design
Remarks *The car height adjustment unit is included for rear spring position.
*STD rear spring's upper rubber seat requires a small modification.
*This product is developed and manufactured base on 2007 right hand drive vehicle.
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

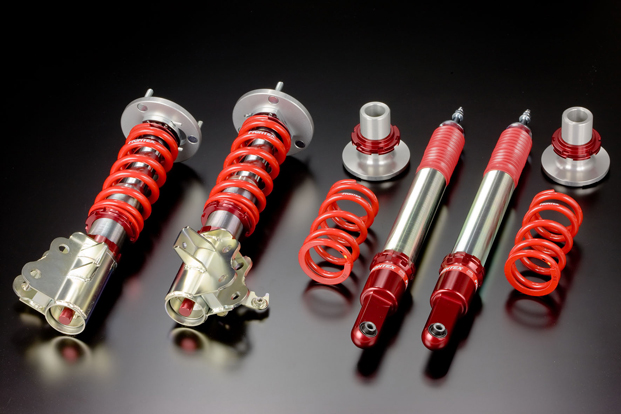

Damper KIT contents: Damper, main spring, car height adjustment lower unit (rear), pillow-ball upper mount (front), spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
