 GD3 FIT |
 |
 |
| GD3 FIGHTEX Damper KIT |
| Type |
 |
| Kit contents |
Damper + Spring |
| Model |
GD3 (FIT) |
| Part No. |
51521-GD3-000 |
| Price (KIT) |
¥329,000~
*Please ask |
| Price (damper only) |
51522-GD3-000
¥306,000~
*Please ask |
Supplied spring rate
[kgf/mm-mm] |
Front |
7K-160 |
| Rear |
7K-160 |
| Adjustable height range to standard height |
Front |
approx. -15mm ~ -60mm |
| Rear |
approx. -10mm ~ -55mm |
| Accessories |
F: Up side down design / R: Standard design |
| Design |
*The car height adjustment unit is included for the rear spring.
*Require modification for rear spring rubber.
*It can not be used for GD3-150/160 (LA-GD3). |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥25,000 ~ /set)
|

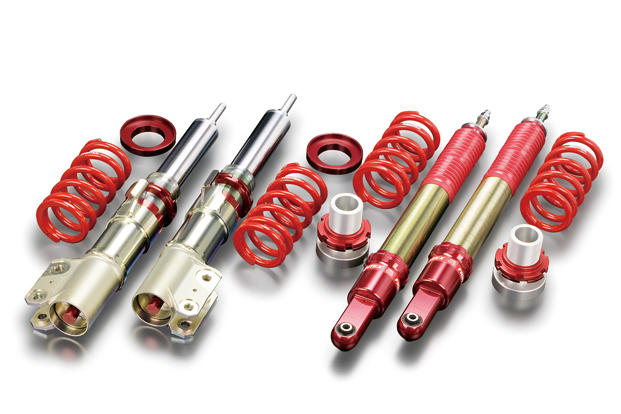

Damper KIT contents: Damper, main spring, car height adjustment lower unit (rear), spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
|
|
|
|
|
