 GG3S ATENZA |
 |
 |
| GG3S FIGHTEX Damper KIT |
| Type |
 |
| Kit contents |

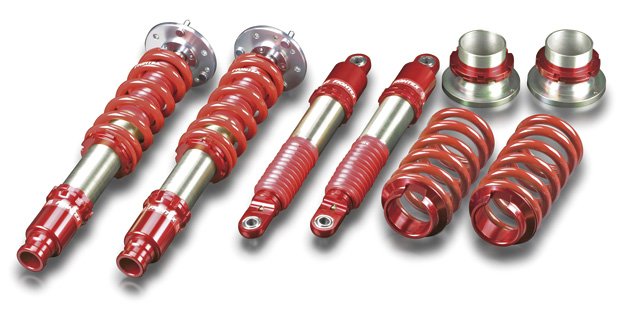

Damper + Spring + Front pillow ball upper mount |
| Model |
GG3S (ATENZA) |
| Part No. |
51520-GG3-000 |
| Price (KIT) |
¥291,000~
*Please ask |
| Price (damper only) |
51522-GG3-000
¥248,000~
*Please ask |
| Price (damper + spring) |
51521-GG3-000
¥266,000~
*Please ask |
Supplied spring rate
[kgf/mm-mm] |
Front |
12K-200 |
| Rear |
12K-180 (ID75mm) |
| Accessories |
Rear upper units and lower seats for the ca height adjustment. |
| Design |
F/R: Standard design |
| Remarks |
The car height adjustment unit and spring seat are included for the rear spring.
*Rear spring is ID75 ( Spring rate can not be changed.)
*Rear damper has the pillow-ball ends for both side.
*Rear standard bump rubber is required to cut off one step for a stroke clearance. |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)
|
Damper KIT contents: Damper, main spring, pillow-ball upper mount, rear upper unit, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided. |
|
|
|
|
