FIGHTEX Damper KIT

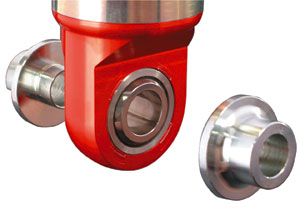

Option Pillow-ball BUSH (F/R)

A pillow-ball (manufactured by NMB) bush can replace the bottom rubber bush. This improves the damper performance through a reduction in compliance.
*Additional change of ¥10,000 ~ ¥32,00 at the time of ordering the damper.


ID60 Springs 200 or 160 ¥6,000/spring

Minimum Windings: We use as few windings as possible, this helps to give the spring a greater consistence over its working range so helping to improve the overall springing and damping of the Fightex suspended car. But this is not at the expense of durability, either. There are very strict conditions set in both precision and safety, as well as a thought towards cost. But the main priority is given to precision and safety. We have there for worked in conjunction with the top spring manufacture in Japan to give you the FIGHTEX spring.

Shot Peening: To increase residual stress found in a spring a shot peening process is given to the spring surface layer, improving durability.

Powder Coating: Excellent powder coating gives the spring an anti-weather coat.

Settling Program: Once a spring has been manufactured it requires a settling in period, all our springs come with having had a settling program. This enables the car ride height to be set up with confidence from day one.

High Precision Plane Grinding: An important point of a straight winded spring. For the whole base of the spring to be positioned correctly, the base of the spring is manufactured in such away that the spring may transfer the loads uniformly about the spring base.

Inside diameter ø60
Free height 200mm 160mm
Rate
(kgf/mm)
Stroke
(mm)
Part No. Stroke
(mm)
Part No.
4.0 133 51401-200-040 103 51401-160-040
5.0 129 51401-200-050 101 51401-160-050
6.0 126 51401-200-060 98 51401-160-060
7.0 121 51401-200-070 96 51401-160-070
8.0 119 51401-200-080 94 51401-160-080
9.0 116 51401-200-090 91 51401-160-090
10.0 115 51401-200-100 90 51401-160-100
11.0 114 51401-200-110 88 51401-160-110
12.0 109 51401-200-120 88 51401-160-120
14.0 107 51401-200-140 82 51401-160-140
16.0 102 51401-200-160 78 51401-160-160
18.0 98 51401-200-180 77 51401-160-180
20.0 96 51401-200-200 75 51401-160-200
22.0 93 51401-200-220 72 51401-160-220

ID70 Springs 140 ¥6,000/spring

Inside Diameter Ø70
Free height 140mm
Rate (kgf/mm) Stroke (mm) Part No.
6.0 95 51401-140-70-060
8.0 96 51401-140-70-080
10.0 88 51401-140-70-100
12.0 79 51401-140-70-120
14.0 77 51401-140-70-140
16.0 76 51401-140-70-160

ID75 Springs 160 or 180 ¥6,000/spring

Inside Diameter Ø75
Free height 160mm
Rate (kgf/mm) Stroke (mm) Part No.
4.0 101 51401-160-75-040
5.0 101 51401-160-75-050
6.0 99 51401-160-75-060
8.0 89 51401-160-75-080
10.0 88 51401-160-75-100
12.0 93 51401-160-75-120
14.0 86 51401-160-75-140

Inside Diameter Ø75
Free height 180mm
Rate (kgf/mm) Stroke (mm) Part No.
12.0 93 51401-180-75-120

[Part No. 51401-100-020]
Helper Springs
1K-h=100~27
¥12,000 (with helper seats)

Spring Upper Seat (Many varieties)
¥3,500/each
???????????
ID60(ø10, ø12)

[Part No. 51687-000-000]
Dust Boot (with boot-band)
¥2,000/each
(Standard equipment for proper standing)

[Part No. 51687-000-001]
Dust Boot ¥1,800/each

[Part No. 51687-000-002]
Boot Band ¥250/each

[Part No. 89320-000-000]
Height Adjustment Wrench
¥4,600 (two wrenches, one set)
[Part No. 51410-060-040]
Spacer ID60 40mm
¥4,000
/each
[Part No. 51411-000-070]
Seat Attachment
¥3,000
/each
ID60→ID70 (Two required per spring top & bottom)
[Part No. 99003-000-000]
Damping Force Adjustment Driver
¥240
/each
[Part No. 51623-000-000]
Damping Force Adjustment Cover
(for the upside down dampers)
¥1,200/each
[Part No. 51622-001-000] SMALL
¥3,900/each
[Part No. 51622-001-001] LARGE
¥6,600/each
Bottom Pillow-bush (only pillow-ball)
Rubber Bush (various)
(FIGHTEX ONLY)
¥2,000/each
[Part No. 51631-000-000]
Pillow-ball (for pillow upper mount)
(Pillow -ball only)
¥4,800/each

Seat Lock
[Part No. 51413-000-048]
[Part No. 51413-000-052]
[Part No. 51413-000-056]
¥2,600/each

ID60 Spring Lower Seat
[Part No. 51412-000-048]
[Part No. 51412-000-052]
[Part No. 51412-000-056]
¥3,000/each

ID70 Spring Lower Seat
[Part No. 51412-000-048-70]
¥3,500/each (for FD2/AK12)

Bracket Lock Seat
[Part No. 51414-000-048] ¥3,000/each
[Part No. 51414-000-052-1] ¥3,000/each
[Part No. 51414-000-052-2] ¥4,000/each
[Part No. 51414-000-056] ¥4,000/each
