S14 SILVIA
well
bnr

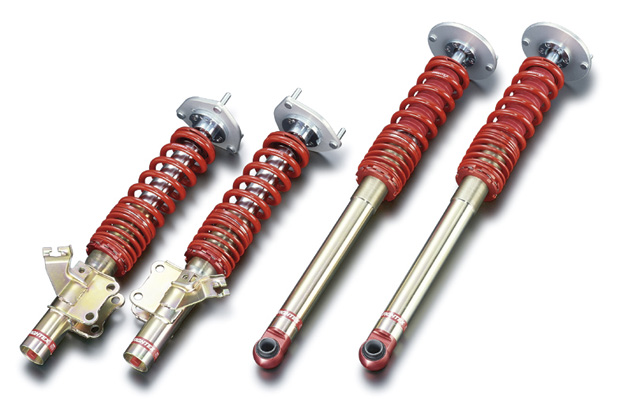

S14 FIGHTEX Damper KIT
Type
TypeFS
Kit contents Damper + Spring + Pillow ball upper mount
Model S14 (SILVIA)
Part No. 51500-S14-000
Price (KIT) ¥263,000~
*Please ask
Price (damper only) 51502-S14-000
¥183,000~
*Please ask
Price (damper + spring) 51501-S14-000
¥213,000~
*Please ask

Option

piloPillow-ball bush (R ¥16,000)
Supplied spring rate
[kgf/mm-mm]
Front 8K-200
Rear 6K-200
Accessories Helper springs
Design F: Up side down design / R: Standard design
Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, helper spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
