 SXE10 ALTEZZA |
 |
 |

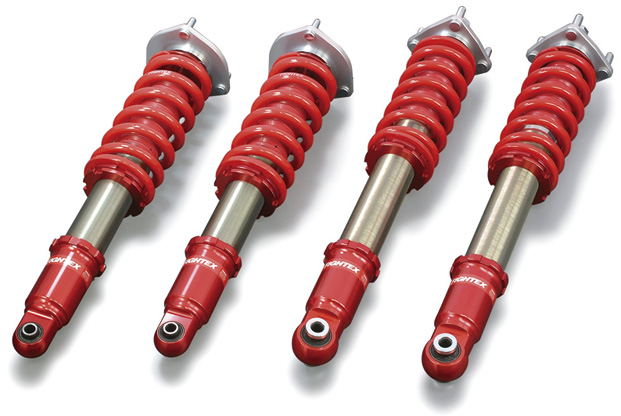

| SXE10 FIGHTEX Damper KIT |
| Type |
 |
| Kit contents |
Damper + Spring + Pillow ball upper mount |
| Model |
SXE10 (ALTEZZA) |
| Part No. |
51520-XE1-000 |
| Price (KIT) |
¥323,000 |
| Price (damper only) |
51522-XE1-000 ¥234,000 |
| Price (damper + spring) |
51521-XE1-000 ¥258,000 |
Supplied spring rate
[kgf/mm-mm] |
Front |
12K-200 |
| Rear |
9K-200 |
| Design |
F/R: Standard design |
| Remarks |
When the standard rear upper mount is used, 160 mm length springs are required. |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥25,000 ~ /set)
|
Damper KIT contents: Damper, main spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided. |
|
|
|
|
