WGNC34 STAGEA
well
bnr

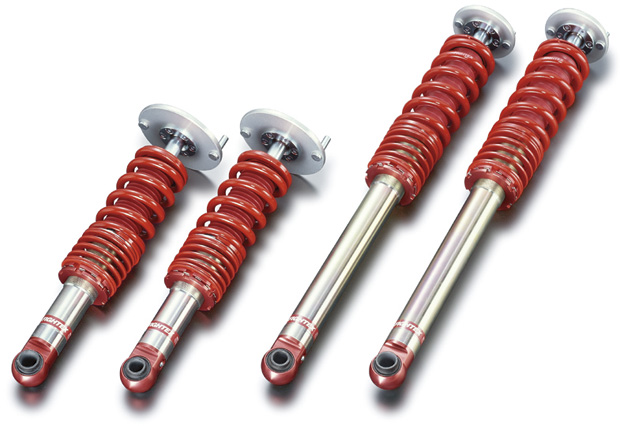

WGNC34 FIGHTEX Damper KIT
Type
TypeFS
Kit contents Damper + Spring + Pillow ball upper Mount
Model WGNC34 (STAGEA)
Part No. 51500-W34-000
Price (KIT) ¥248,000~
*Please ask
Price (damper only) 51502-W34-000
¥168,000~
*Please ask
Price (damper + spring) 51501-W34-000
¥198,000~
*Please ask

Option

piloPillow-ball bush (FR ¥32,000)
Supplied spring rate
[kgf/mm-mm]
Front 10K-160
Rear 10K-200
Accessories Helper springs
Design F/R Standard design
Remarks AUTEC version is available.
(The price and spring rate is the same as BCNR33 spec)
Spring rate can be changed at the time of order (A price is the same).
Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, helper spring, pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot, car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided.
