 ZZE122 COROLLA FIELDER |
 |
 |

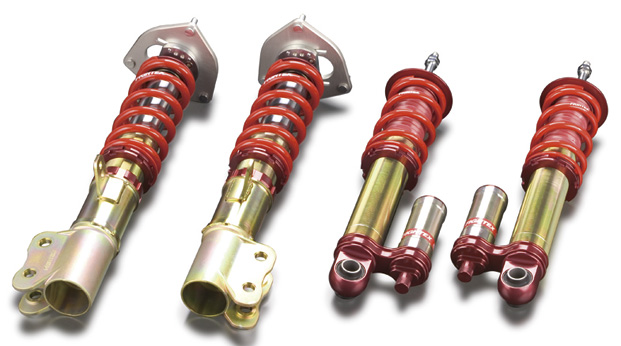

| ZZE122 FIGHTEX Damper KIT |
| Type |
 |
| Kit contents |
Damper + Spring + Front pillow ball upper mount |
| Model |
ZZE122 (COROLLA FIELDER) |
| Part No. |
51520-ZZE-000 |
| Price (KIT) |
¥375,000~
*Please ask |
| Price (damper only) |
51522-ZZE-000
¥319,000~
*Please ask |
| Price (damper + spring) |
51521-ZZE-000
¥342,000~
*Please ask |
Supplied spring rate
[kgf/mm-mm] |
Front |
7K-200 |
| Rear |
4K-200 |
| Design |
F: Up side down design / R: Standard design |
| Rear dampers have no adjustable bracket for ride height control. Rear damper design has independent bump and rebound with separate tank design. Original upper mount requred. |
|
|
-Spring rate can be changed at the time of order with no additional cost (depending on the spring rate, damping force may need to be changed with extra cost).
-Damping force can be changed at the time of order. (Additional charge ¥25,000 ~ /set)
|
Damper KIT contents: Damper, main spring, front pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
Note: Basically Fightex damper is designed to be based on the standard upper mount. When pillow-ball upper mount kits are not available, the spring upper seat for the standard upper mount is provided. |
|
|
|
|
