F20C/F22C(AP1/AP2) TODA Standard Exhaust Manifold (4-2-1 SUS)
F20C/F22C (AP1/AP2) S2000
In order to get the best performance, engine power, efficiency, this exclusive exhaust manifold design takes into consideration not only the special characteristics of the F20/22C engine but also the results of an extensive bench testing program.

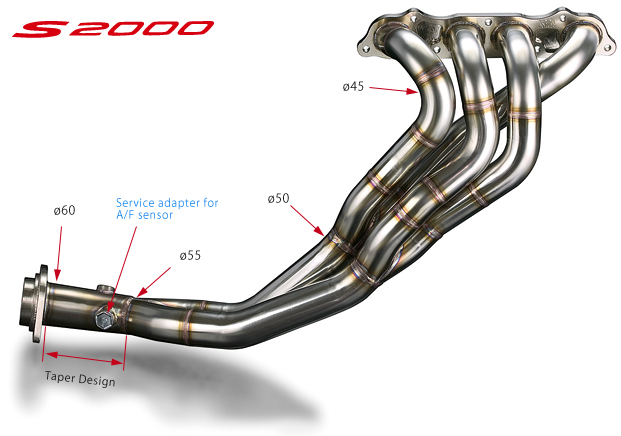

-A bench test (Equal length 4-2-1 + Taper) design Ø45mm → Ø50mm → Ø55mm → Taper → Ø60mm
*Taper design is adopted from feedback from both racing and the bench testing. -Racing high flow junctions design
Each section of the manifold has optimized pipe lengths, diameters and angles as well as high flow junctions. -With the service adapter for A/F sensor -Made of light weight stainless steel for both durability and looks -Flange manufactured by high precision machining center -The standard catalyst can be installed.
F20C/F22C (AP1/AP2) TODA Standard Exhaust Manifold (4-2-1 SUS)
