M16A(ZC31S/ZC32S) SWIFT SPORT
In order to get the best performance, engine power, efficiency, this exclusive exhaust manifold design takes into consideration not only the special characteristics of the M16A engine but also the results of an extensive bench testing program.

-Racing purpose only (the manifold catalyst is not included)

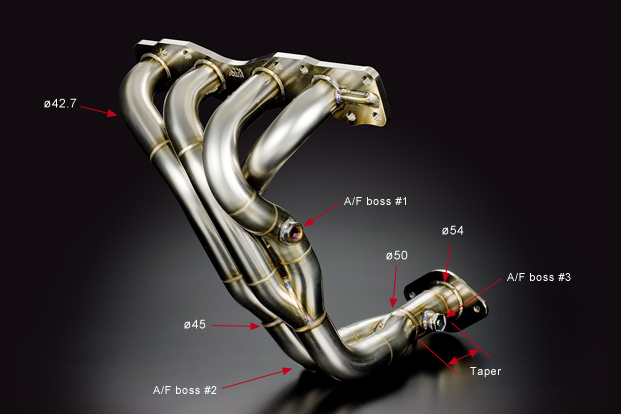

-A bench test (Equal length 4-2-1 + Taper) design
Ø42.7mm → Ø45mm → Ø50mm → Taper → Ø54mm
*Taper design is adopted from feedback from both racing and the bench testing.
-Racing high flow junctions design
Each section of the manifold has optimized pipe lengths, diameters and angles as well as high flow junctions.
-With the service adapter for A/F sensor (3 bosses are provided)
-Made of light weight stainless steel for both durability and looks
-Flange manufactured by high precision machining center
-The standard catalyst can NOT be used
*Though joint faces may have different diameters, this can still be used with stock muffler.

M16A(ZC31S/ZC32S) Exhaust Manifold (4-2-1 SUS)

Engine type

M16A(ZC31S/ZC32S)
Part No. 18100-ZC3-100
Price ¥120,000
Size <Equal length 4-2-1 + Taper> Ø42.7mm → Ø45mm → Ø50mm → Taper → Ø54mm
Remarks *This product is compatible with ZC32S.
