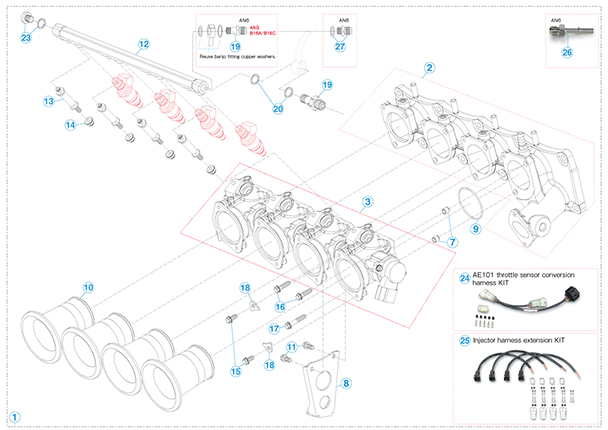

TODA Sports Injection Parts List (i.e. AP1/S2000)

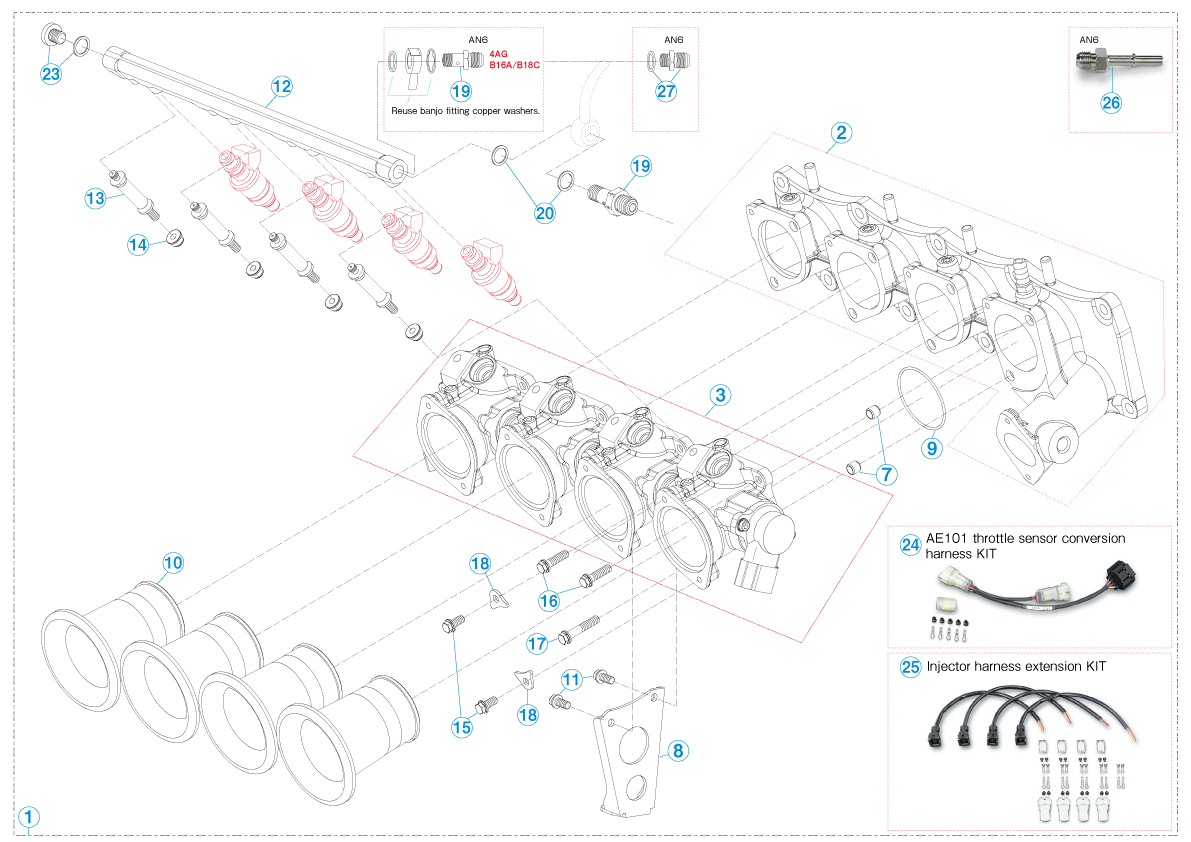

*Click above image and see larger image.

  Part No. Part Name Qty Price
(per)
Remarks
7
99999-000-109 Dowel pin
8
¥200
8
16411-TR0-001-1 Accel wire stay (F20C/B16A/B16B/B18C/-R)
1
¥3,500
16411-TR0-001-2 Accel wire stay (4AG)
1
¥3,500
16411-TR0-001-3 Accel wire stay (K20A)
1
¥3,500
9
99999-000-110-1 Throttle body O-ring
4
¥350
10
17342-045-033 Super flow trumpet Ø45mm L-33mm
4
¥9,000
17342-045-063 Super flow trumpet Ø45mm L-63mm
4
¥9,000
17342-045-088 Super flow trumpet Ø45mm L-88mm
4
¥9,000
17342-050-033 Super flow trumpet Ø50mm L-33mm
4
¥9,000
17342-050-063 Super flow trumpet Ø50mm L-63mm
4
¥9,000
17342-050-088 Super flow trumpet Ø50mm L-88mm
4
¥9,000
11
16411-TR0-021 Accel wire stay set bolt
2
¥100
12
16610-000-875 Fuel delivery rail 4AG(P87.5mm)
1
¥32,000
16610-000-900 Fuel delivery rail B16/18C(P90.0mm)
1
¥32,000
16610-000-940 Fuel delivery rail F20C(P94.0mm/inHØ10.7mm)
1
¥32,000
16610-000-940-1 Fuel delivery rail K20A(P94.0mm/inHØ13.5mm)
1
¥32,000
13
16612-TR0-001 Fuel delivery rail stay (F20C/K20A)
4
¥1,500 *1
16612-TR0-002 Fuel delivery rail stay (4AG/B16/18/NSX)
4
¥1,500 *2
14
99999-000-102 Fuel delivery rail stay lower nut
4
¥50
15
99999-000-111 Trumpet set bolt (M6×10)
8
¥120
16
99999-000-112-1 Throttle body set bolt upper (M6×22)
8
¥120
17
99999-000-113-1 Throttle body set bolt lower (M6×32)
4
¥120
18
99999-000-100-2 Trumpet securing plate
8
¥480
19
12312-4AG-000 Fuel union bolt (4AG/B16A/18C)
1
¥7,500
12312-F20-000 Fuel union bolt (F20C)
1
¥7,500
20
12312-F20-101 Fuel union bolt washer (F20C)
1
¥300
22
12312-F20-100 Fuel union bolt spacer T=3mm (F20C)
1
¥700
23
12313-4AG-000 Fuel delivery rail plug
1
¥600
24
99999-000-114 AE101 throttle sensor conversion harness KIT (4AG)
1
¥12,000
99999-000-114-1 AE101 throttle sensor conversion harness KIT (F20C)
1
¥12,000
99999-000-114-2 AE101 throttle sensor conversion harness KIT (B16/18C/K20A)
1
¥12,000
25
99999-000-115 Injector harness extension KIT
1
¥8,000 *3
26
12314-000-001 Quick connect joint for fuel line (AN6)
1
¥6,000 *4
27
12312-000-100 Fuel delivery rail joint (with O-washer)
1
¥2,500 *5
2
17100-F20-100 Intake manifold Ø50 F20C

17100-K20-100 Intake manifold Ø50 K20A (DC5/EP3)

17100-K20-110 Intake manifold Ø50 K20A (CL7/FD2)

17100-B16-101 Intake manifold Ø45 B16A/18C-R

17100-B18-101 Intake manifold Ø45 B18C

17100-B16-102 Intake manifold Ø50 B16A/18C-R

17100-B18-102 Intake manifold Ø50 B18C

17100-4AG-101 Intake manifold Ø45 4AG

17100-NSX-100 Intake manifold Ø50 NSX

3
16410-4AG-000 Throttle body assembly Ø45 4AG

16410-K20-000 Throttle body assembly Ø50 K20A

16410-F20-000 Throttle body assembly Ø50 F20C

16410-B18-000 Throttle body assembly Ø45 B16A/B18C-R/B18C

16410-B18-001 Throttle body assembly Ø50 B16A/B18C-R/B18C



*1 L=31.8mm
*2 L=42.5mm
*3 The injector connector design may vary, state injector type on ordering.
*4 AN6 can be attached in a standard fuel hose by one pushing connection.
*5 For K20A/NSX
