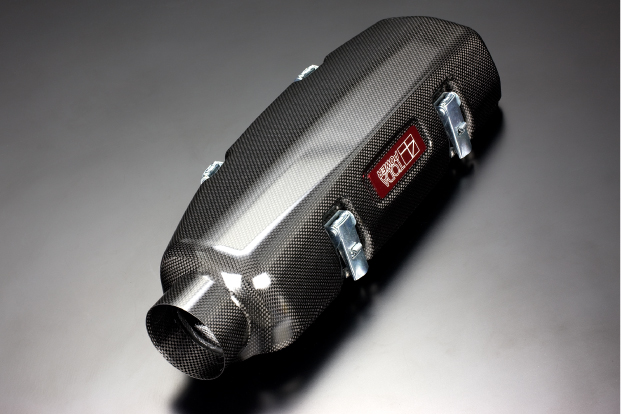

K20A(DC5/EP3/CL7/FD2) Dry Carbon High Power Surge Tank
Inlet outer diameter 80mm (inner diameter: 77.5mm). Dry Carbon made.
(Weight: 750g)

- Can be used with TODA Sports Injection KIT.
- "Camloc" fastener used. Also used in GT.
- O-ring used to make air tight and resistant to vibration damage.
- Whole dry carbon body cool, light and tough.

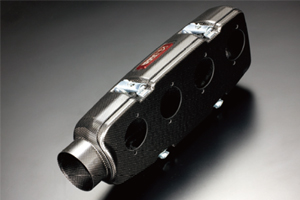

Adjustment type lever lock fastener

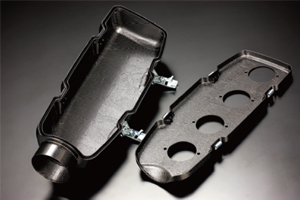

O-ring to make air tight and to resist vibration damage

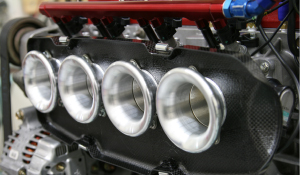

*The image of the 33mm long trumpet.
Tank depth limits the trumpet length to 33mm.
K20A(DC5/EP3/CL7/FD2) Dry Carbon High Power Surge Tank

Engine Type

K20A (EP3/CL7/DC5/FD2) K20A (EP3/CL7)
Part No. 17110-K20-05D 17110-K20-00D
Price ¥120,000 ¥120,000
Remarks *No.1 cylinder trumpet requires cutting one edge by 5mm. *All holes are moved to the mouth end by 8mm, making it unnecessary to cut the trumpets. Recommended only for EP3/CL7.
Tank depth limits the trumpet length to 33mm.
Some modifications are necessary to the radiator upper support in the case of the EP3.
