3SG(SXE10) Increased Capacity 2200 KIT I Type High Comp
3SG SXE10 ALTEZZA
Click here for
"Central Oil Feed" information.
Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.
3SG(SXE10) Increased Capacity 2200 KIT I Type High Comp
Engine Type
3SG (SXE10) *TODA's option type connecting-rods recommended.
Option
-
I Section Strengthened connecting-rods
-
I Section Strengthened connecting-rods
Part No.
13000-3SG-200
13001-3SG-200-I
13000-3SG-201
13001-3SG-201-I
Price (set)
¥383,000
¥583,000
¥383,000
¥583,000
Bore×Stroke
ø86.00×93mm
ø87.00×93mm
Displacement
2161cc
2211cc
Crown Volume *1
-3.1cc/-9.5cc
-3.1cc/-9.6cc
Projection Height *2
-1.1mm
-1.1mm
Reference C/R *3
TODA head GK t=0.5mmξ≈12.6:1
TODA head GK t=0.5mmξ≈12.8:1
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
The opening in the oil pan baffle plate may need to be modified.
In use of center oil spray, connecting rod bearings may need a oil feed hole drilling modification depending on the type of bearings to use.

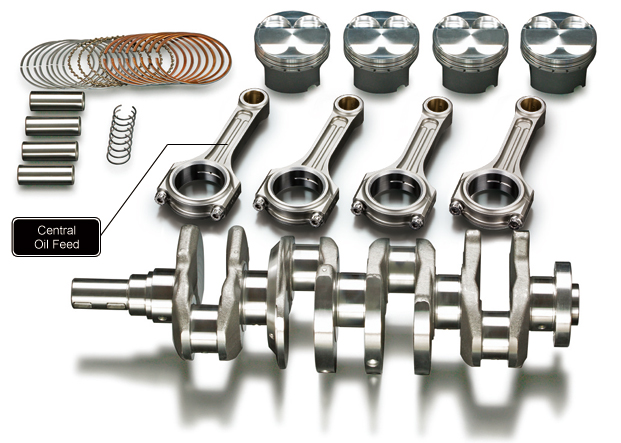

KIT Contents
1
TODA forged piston KIT ø86.00mm/ø87.00mm (2161cc/2211cc)
2
Special crankshaft (Long stroke, High accuracy dynamic balanced)
3
I Section Strengthened Connecting-rods (Fully floating with bush & balanced)<option>
