3SG SXE10 ALTEZZA
Click here for
"Central Oil Feed" information.
Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.
This product will be discontinued.

3SG(SXE10) Increased Capacity 2200 KIT I Type Low Comp (for TURBO/SC)

Engine Type

3SG (SXE10) for TURBO/SC
*TODA's option type connecting-rods required.
Option - I Section Strengthened connecting-rods
Part No. 13000-3SG-2T0 13001-3SG-2T0-I
Price (set) ¥348,000 ¥530,000
Bore×Stroke ø86.00×93mm
Displacement 2161cc
Crown Volume *1 -25.7cc/-33.3cc
Projection Height *2 -1.3mm
Reference C/R *3 Standard head GKξ≈8.6:1
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
The opening in the oil pan baffle plate may need to be modified.
In use of center oil spray, connecting rod bearings may need a oil feed hole drilling modification depending on the type of bearings to use.

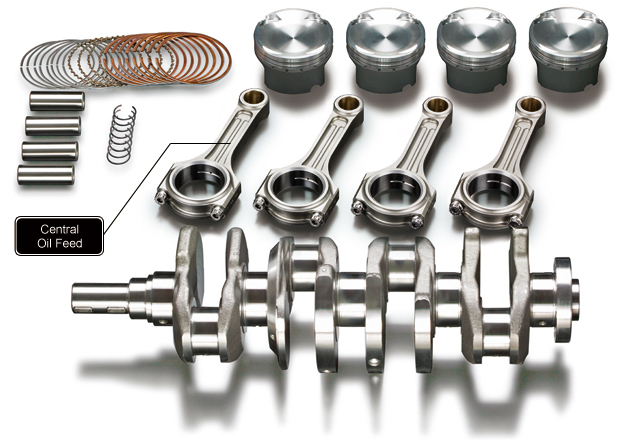

KIT Contents
1 TODA forged piston KIT ø86.00mm (2161cc)
2 Special crankshaft (Long stroke, High accuracy dynamic balanced)
3 I Section Strengthened Connecting-rods (Fully floating with bush & balanced)<option>
