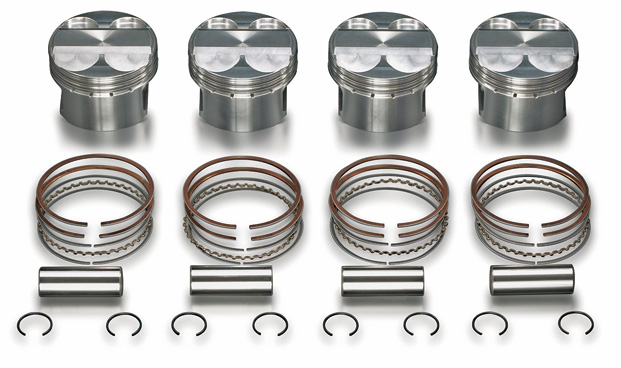

3SG(SXE10) Hi Comp Forged Piston KIT

Engine Type

3SG (SXE10) 3SG (SXE10)
Part No. 13010-3SG-200 13020-3SG-200
Price (set) ¥108,000 ¥108,000
Bore ø86.00mm ø87.00mm
Displacement 1998cc 2045cc
Crown Volume *1 1.5cc/-6.1cc 1.5cc/-6.2cc
Projection Height *2 -1.3mm -1.3mm
Reference C/R *3 TODA head GK t=0.5mmξ≈12.6:1 TODA head GK t=0.5mmξ≈12.8:1
Option *TODA's I section connecting rods are recommended.
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
