3SG SXE10 ALTEZZA
Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.

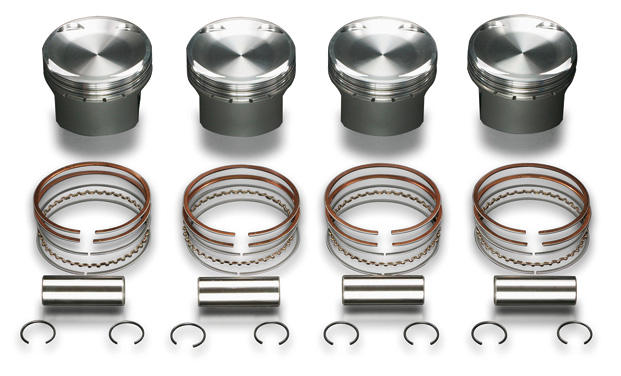

3SG (SXE10) Low Comp Forged Piston KIT for TURBO

Engine Type

3SG (SXE10) for TURBO 3SG (SXE10) for TURBO
Part No. 13010-3SG-2T0 13020-3SG-2T0
Price (set) ¥98,000 ¥98,000
Bore ø86.00mm ø87.00mm
Displacement 1998cc 2045cc
Crown Volume *1 -21.5cc/-29.1cc -21.5cc/-29.2cc
Projection Height *2 -1.3mm -1.3mm
Reference C/R *3 Standard head GKξ≈8.5:1 Standard head GKξ≈8.7:1
Option *TODA's option type connecting-rods are required.
→I section connecting-rods
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
