4AG 4valve LEVIN, TRUENO

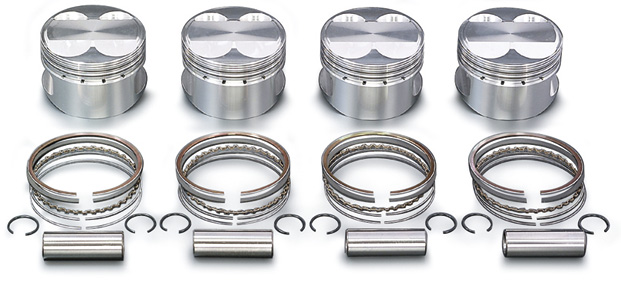

4AG (4 valve) High Comp Forged Piston KIT (pin size 18mm)

Engine type

4AG 4 Valve (pin size 18mm)
Part No. 13010-4AG-000 13020-4AG-000 13040-4AG-000
Price (set) ¥88,000 ¥88,000 ¥88,000
Bore ø81.00mm ø81.25mm ø82.00mm
Displacement 1587cc 1597cc 1627cc
Crown Volume *1 3.96cc/3.7cc 3.96cc/3.7cc 3.96cc/3.7cc
Projection Height *2 -0.05mm -0.05mm -0.05mm
Reference C/R *3 Standard head GKξ≈11.0:1 Standard head GKξ≈11.1:1 Standard head GKξ≈11.3:1
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
4AG (4valve) High Comp Forged Piston KIT (pin size 20mm)

Engine type

4AG 4Valve (pin size 20mm)
Part No. 13010-4AG-001 13020-4AG-001 13040-4AG-001
Price (set) ¥88,000 ¥88,000 ¥88,000
Bore ø81.00mm ø81.25mm ø82.00mm
Displacement 1587cc 1597cc 1627cc
Crown Volume *1 3.96cc/3.7cc 3.96cc/3.7cc 3.96cc/3.7cc
Projection Height *2 -0.05mm -0.05mm -0.05mm
Reference C/R *3 Standard head GKξ≈11.0:1 Standard head GKξ≈11.1:1 Standard head GKξ≈11.3:1
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
