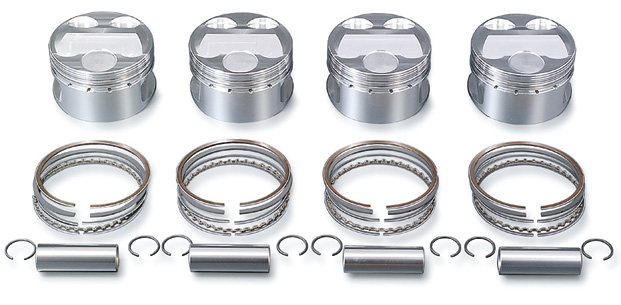

4AG(5valve) High Comp Forged Piston KIT (for AE101)
4AG
AE101 LEVIN, TRUENO
4AG (5 valve)
High Comp Forged Piston KIT for AE101
Engine type
4AG 5 Valve (for AE101)
Part No.
13010-101-000
13020-101-000
13040-101-000
Price (set)
¥97,000
¥97,000
¥97,000
Bore
ø81.00mm
ø81.25mm
ø82.00mm
Displacement
1587cc
1597cc
1627cc
Crown Volume *1
5.6cc/4.6cc
5.6cc/4.6cc
5.6cc/4.5cc
Projection Height *2
-0.2mm
-0.2mm
-0.2mm
Reference C/R *3
Standard head GKξ≈11.4:1
TODA head GK t=0.8mmξ≈12.0:1
Standard head GKξ≈11.5:1
TODA head GK t=0.8mmξ≈12.1:1
Standard head GKξ≈11.6:1
TODA head GK t=0.8mmξ≈12.3:1
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
