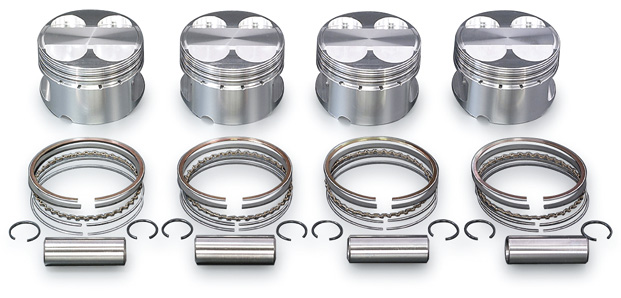

B6 (NA6CE) High Comp Forged Piston KIT

Engine type

B6 (NA6CE)
Part No. 13010-B60-000
Price (set) ¥97,000
Bore ø81.00
Displacement 1722cc
Crown Volume *1 -2.0cc/-1.0cc
Projection Height *2 +0.2mm
Reference C/R *3 TODA head GK t=0.8mmξ≈11.0:1
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
*Standard head gasket can not be used.
