F20C/F22C S2000
Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.
Strengthened chrome molly I section connecting-rods are included.

F20C/F22C (S2000) Increased Capacity 2400KIT NA I Type High Comp

Engine Type

F20C/F22C 2400KIT-I (2378) F20C/F22C 2400KIT-I (2405)
Part No. 13001-F20-400-I 13001-F20-401-I
Price (set) ¥830,000 ¥830,000
Bore×Stroke ø87.00×100mm ø87.50×100mm
Displacement 2378cc 2405cc
Crown Volume *1 -0.56cc/5.38cc -0.56cc/5.45cc
Projection Height +1.0mm (from the deck of the block) +1.0mm (from the deck of the block)
Reference C/R *2 Standard head GK t=0.6mmξ≈12.12:1 Standard head GK t=0.6mmξ≈12.27:1
Based on standard piston pin diameter.
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:The compression ratio given above are only to be taken as a guide, measurements are required.
F20C/F22C (S2000) Increased Capacity 2400KIT NA I Type Ultra High Comp

Engine Type

F20C/F22C 2400KIT-IH (2378) F20C/F22C 2400KIT-IH (2405)
Part No. 13001-F20-400-IH 13001-F20-401-IH
Price (set) ¥830,000 ¥830,000
Bore×Stroke ø87.00×100mm ø87.50×100mm
Displacement 2378cc 2405cc
Crown Volume *1 3.3cc/9.2cc 3.3cc/9.3cc
Projection Height +1.0mm (from the deck of the block) +1.0mm (from the deck of the block)
Reference C/R *2 Standard head GK t=0.6mmξ≈13.0:1 Standard head GK t=0.6mmξ≈13.2:1
Based on standard piston pin diameter.
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:The compression ratio given above are only to be taken as a guide, measurements are required.

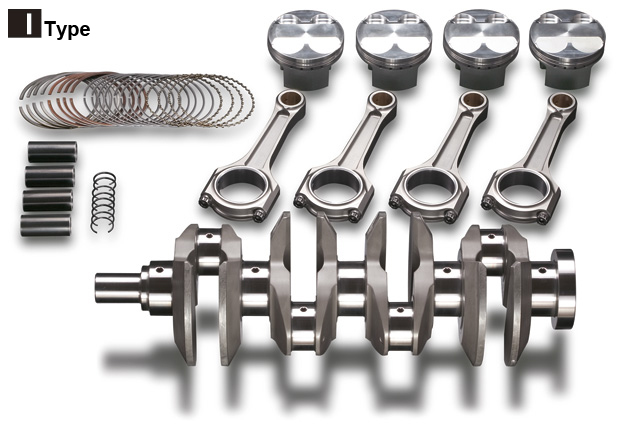

KIT Contents
1 TODA forged piston KIT ø87.0mm / ø87.50mm (2378cc/2405cc)
2 Special billet crankshaft (Long stroke, High accuracy dynamic balanced)
(→Here is Special billet crankshaft)
3 I section chrome molly connecting-rods (Fully floating with Bush & balanced)
(→Here is I section connecting-rods)
