F20C S2000
Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.

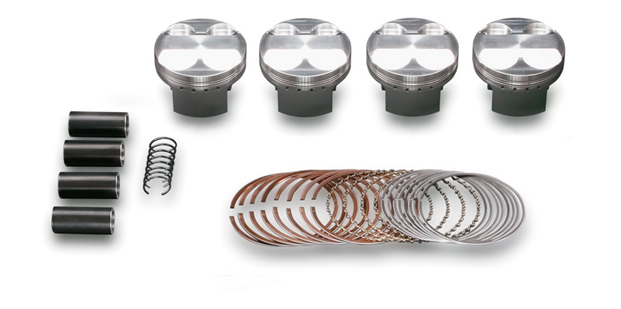

F20C High Comp Forged Piston KIT (for 2200 KIT)

Engine Type

F20C F20C
Part No. 13050-F20-001 13050-F20-002
Price (set) ¥120,000 ¥120,000
Bore×Stroke ø87.00×90.7mm ø87.50×90.7mm
Displacement 2157cc 2182cc
Crown Volume *1 4.35cc/10.3cc 4.35cc/10.4cc
Projection Height +1.0mm (from the deck of the block) +1.0mm (from the deck of the block)
Reference C/R *2 Standard head GK t=0.6mmξ≈12.11:1 Standard head GK t=0.6mmξ≈12.25:1
Based on standard piston pin diameter.
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:The compression ratio given above are only to be taken as a guide, measurements are required.
Cylinder head combustion chamber may need a boring modification to gain sufficient clearance.
This product is a repair part for TODA F20C 2200 KIT, but this can be also used as F22C high comp piston kit.
