F20C S2000
Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.

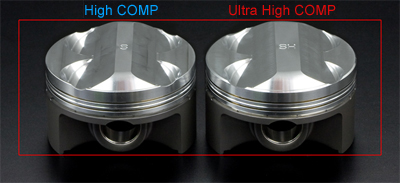

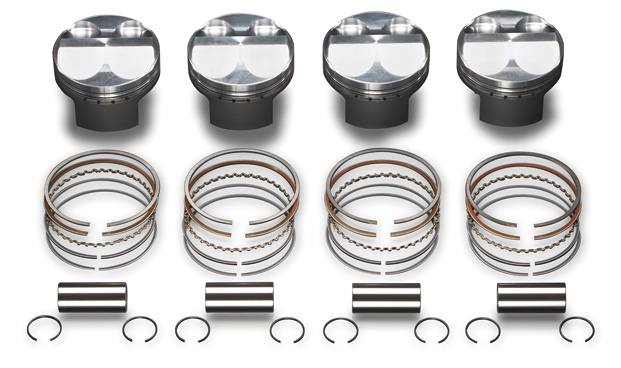

F20C High Comp Forged Piston KIT (For 84mm standard stroke of 2000cc)

Engine Type

F20C F20C
Part No. 13010-F20-000 13020-F20-000
Price (set) ¥119,000 ¥119,000
Bore×Stroke ø87.00×84mm (standard stroke) ø87.50×84mm (standard stroke)
Displacement 1997cc 2020cc
Crown Volume *1 7.9cc/13.9cc 7.9cc/14.0cc
Projection Height +1.0mm (from the deck of the block) +1.0mm (from the deck of the block)
Reference C/R *2 Standard head GK t=0.6mmξ≈12.1:1 Standard head GK t=0.6mmξ≈12.3:1
Based on standard piston pin diameter.
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:The compression ratio given above are only to be taken as a guide, measurements are required.
Cylinder head combustion chamber may need a boring modification to gain sufficient clearance.
