M16A(ZC31S/ZC32S) SWIFT SPORT
M16A(ZC31S/ZC32S) High CompForged Piston KIT for Increased Capacity 1884
Increasing the capacity from 1,586cc to 1,884cc through a larger bore improves the whole engine performance. With retaining the standard stroke, the engines sporty characteristics are maintained.

Defric coating (Lubricous film) is applied to the piston skirt for a reduction in friction and loads as well as improved durability.

*TODA Power Liner KIT and TODA Head Gasket are required. (Sold separately)
M16A(ZC31S/ZC32S) Power Liner KIT
M16A(ZC31S/ZC32S) High Stopper Metal Head Gasket

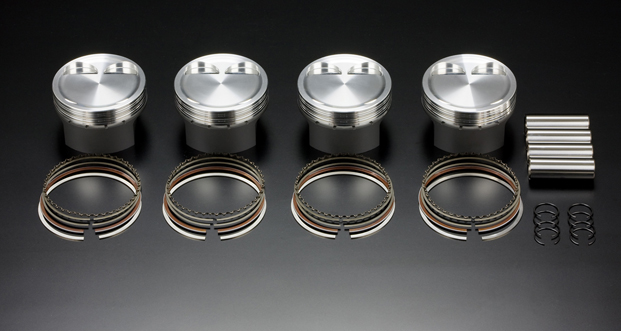

M16A(ZC31S/ZC32S) High Comp Forged Piston KIT

Engine type

M16A(ZC31S/ZC32S)
Part No. 13050-M16-B00
Price (set) ¥79,000
Bore×Stroke ø85.00×83mm
Displacement 1884cc
Crown Volume *1 -8.2cc/-9.9cc
Projection Height *2 -0.3mm
Reference C/R *3, TODA head GK t=0.6mm ξ≈12.2:1
*1:Crown volume is measured "from the piston shoulder"/"from the deck of the block".
*2:Piston shoulder height is measured from the deck of the block.
*3:The compression ratios given above are only to be taken as a guide, measurements are required.
