 F20C/F22C S2000 |
 |

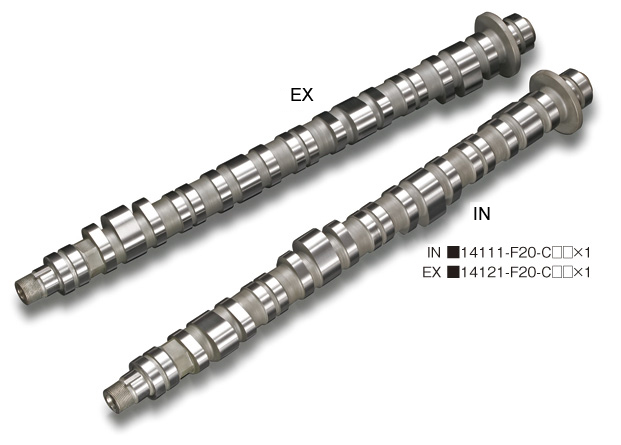

| F20C/F22C High Power Profile Camshaft |
| Part No. |
Angle (valve lift) |
Type |
Price |
| ♦14111-F20-C2A |
A2 : 235(8.0) / 295(13.0) / 240(8.5) |
IN |
¥64,000 |
| ♦14121-F20-C2A |
A2 : 230(8.0) / 290(12.0) / 235(8.5) |
EX |
¥64,000 |
| 14111-F20-C2B |
B2 : 250(11.0) / 302(13.2) / 250(11.0) |
IN |
¥64,000 |
| 14121-F20-C2B |
B2 : 250(11.0) / 292(12.7) / 250(11.0) |
EX |
¥64,000 |
| 14111-F20-C2C |
C2 : 250(11.0) / 307(13.2) / 250(11.0) |
IN |
¥64,000 |
| 14121-F20-C2C |
C2 : 250(11.0) / 297(12.7) / 250(11.0) |
EX |
¥64,000 |
*On installing confirming that there is enough, valve to piston clearance, valve to valve clearance, cam lob to follower clearance during mid cam operation.
*Caution: finger follower (roller rocker-arm) may need modifying due to contact with the cam lob.
*The cam angles for Primary, Mid, Secondary are indicated.
*Standard valve spring cannot be used
*TODA Up Rated Valve Spring required.
♦ Can idle with STD ECU.
*This product is recommended to use in conjunction with the following Toda products.
Free Adjusting Cam Gears,
Heavy Duty Timing Chain,
Heavy Duty Oil Pump Chain,
Heavy Duty Chain Tensioner |
|
|
|
|
|
|
