DC5 INTEGRA TypeR
well
TypeDA
g-cro
The product of above image is optional specification model that Green Chromate surface treatment is used on the outer cases and the front bottom brackets. Has at least twice as much resistance to corrosion as that of other companies plating techniques.
This optional specification is available for other models of FIGHTEX dampers.
→Check Overhaul and /or specification change price list.
*Click the damper images below to see larger pictures.

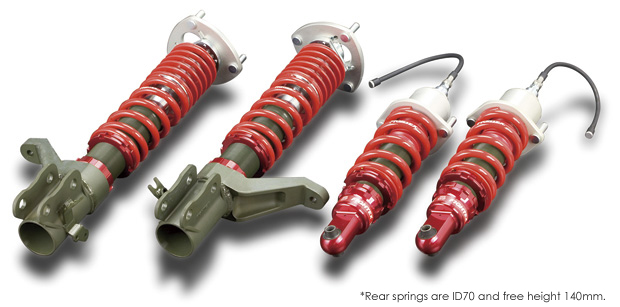

DC5 FIGHTEX Damper KIT
Type TypeDA TypeDA-G
TypeEX
ep3-da ep3-ex
Kit contents Damper + Spring + Pillow ball upper Mount
Model DC5 (INTEGRA TypeR)
Part No. 51520-DC5-000 51530-DC5-000 51540-DC5-000
Price (KIT) ¥310,000
¥315,000 (Green Chromate spec)
¥324,000 ¥430,000~
*Please ask

Option

piloPillow-ball bush (R ¥10,000)
Supplied spring rate
[kgf/mm-mm]
Front 8K-160 16K-160 8K-160
Rear 12K-140(ID70mm) 16K-140(ID70mm) 12K-140(ID70mm)
Accessories Front helper springs - Front helper springs
Design F:Upside down design / R:Standard design
Remarks Normal upper mount is unavailable.
*Rear springs ID:70.
Rear damper have no adjustable bracket for ride height adjustment.
Normal upper mount is unavailable.
*Rear springs ID:70.
Spring rate can be changed at the time of order (A price is the same).
ID60 - Spring rate kgf/mm (4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22)
ID70 - Spring rate kgf/mm (6, 8, 10, 12, 14, 16)
-Damping force can be changed at the time of order. (Additional charge ¥20,000 ~ /set)

Damper KIT contents: Damper, main spring, front helper spring (on certain types only), pillow-ball upper mount, spring upper seat, spring lower seat, lock seat, dust boot (rear), car height adjustment wrench, damping force adjustment wrench, instruction manual.
